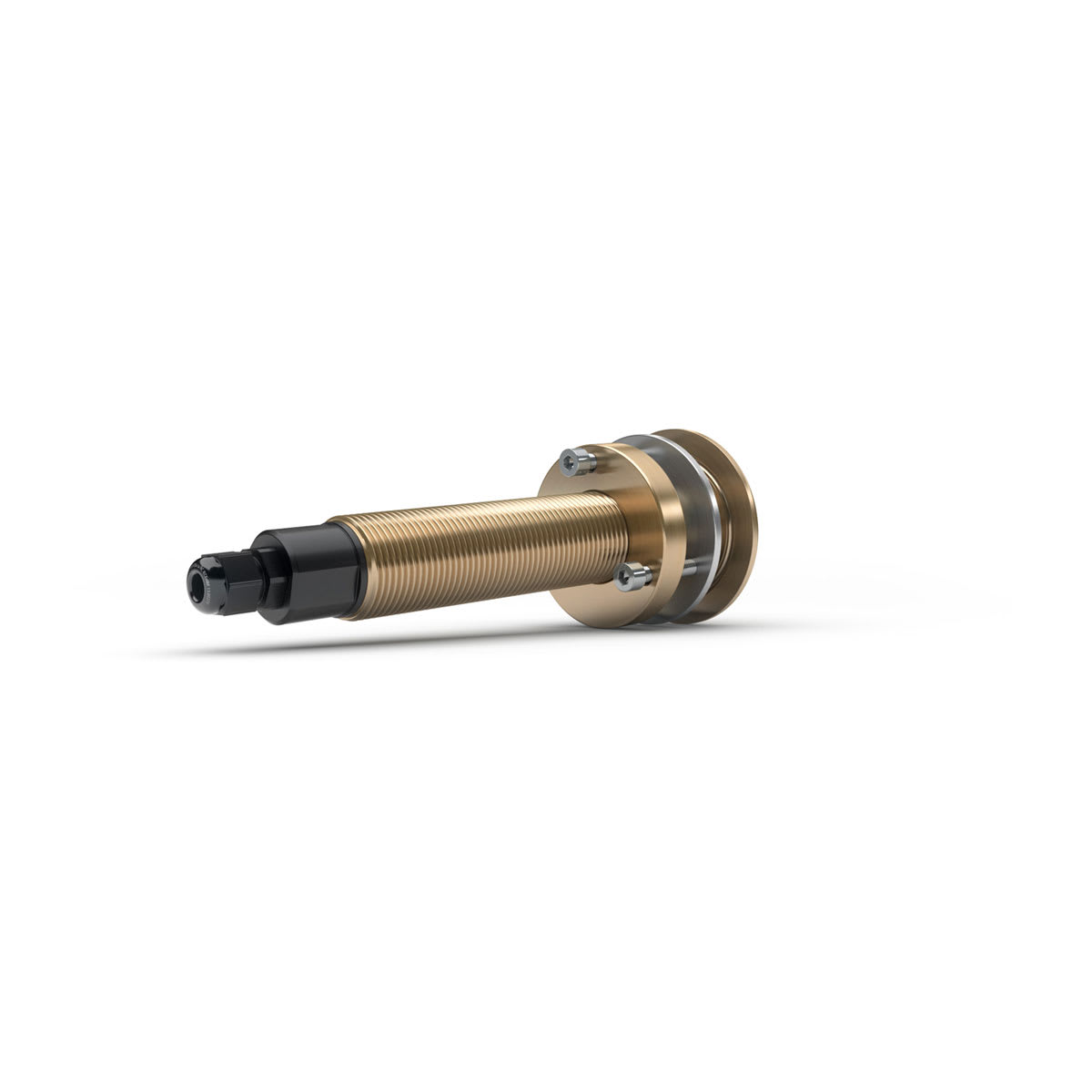

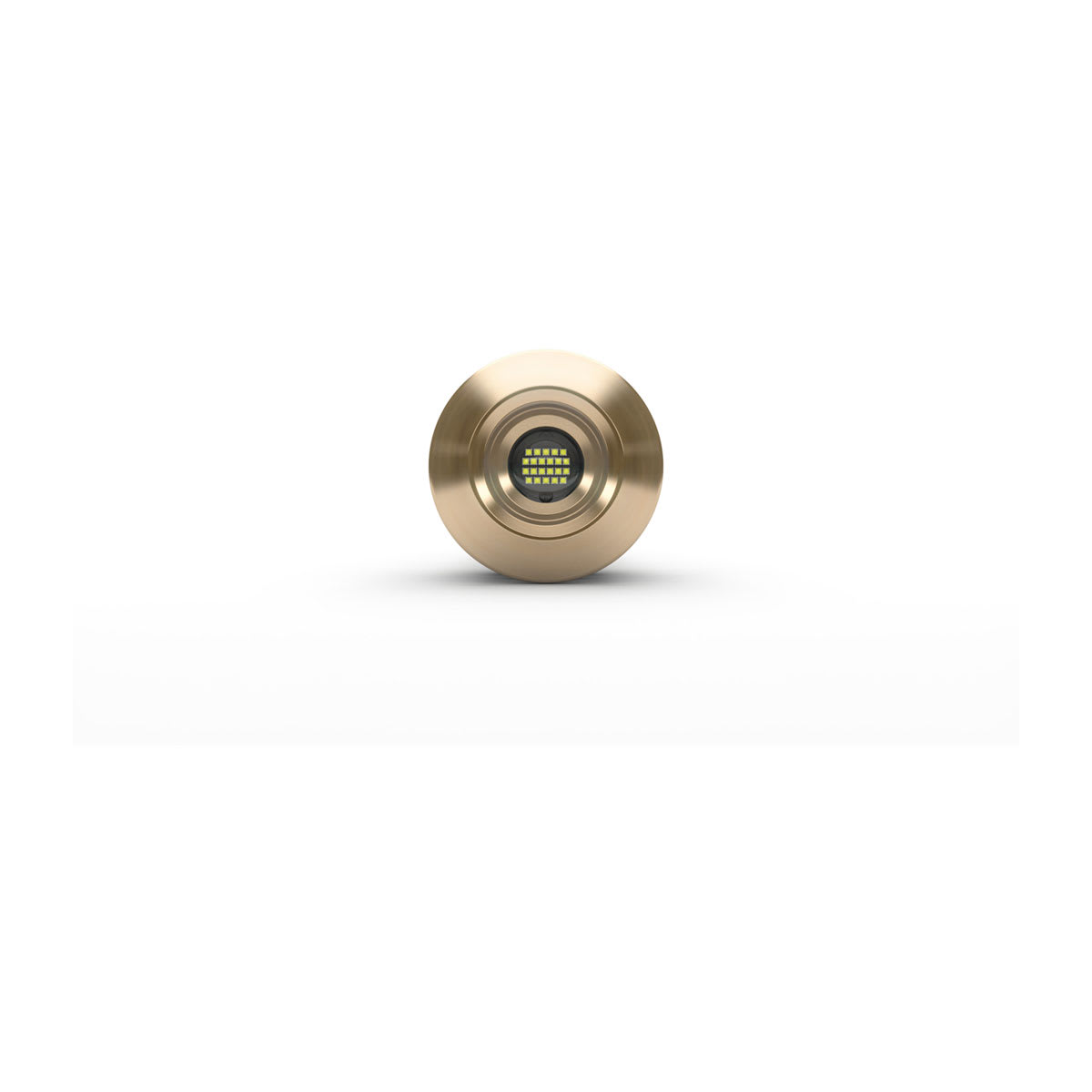

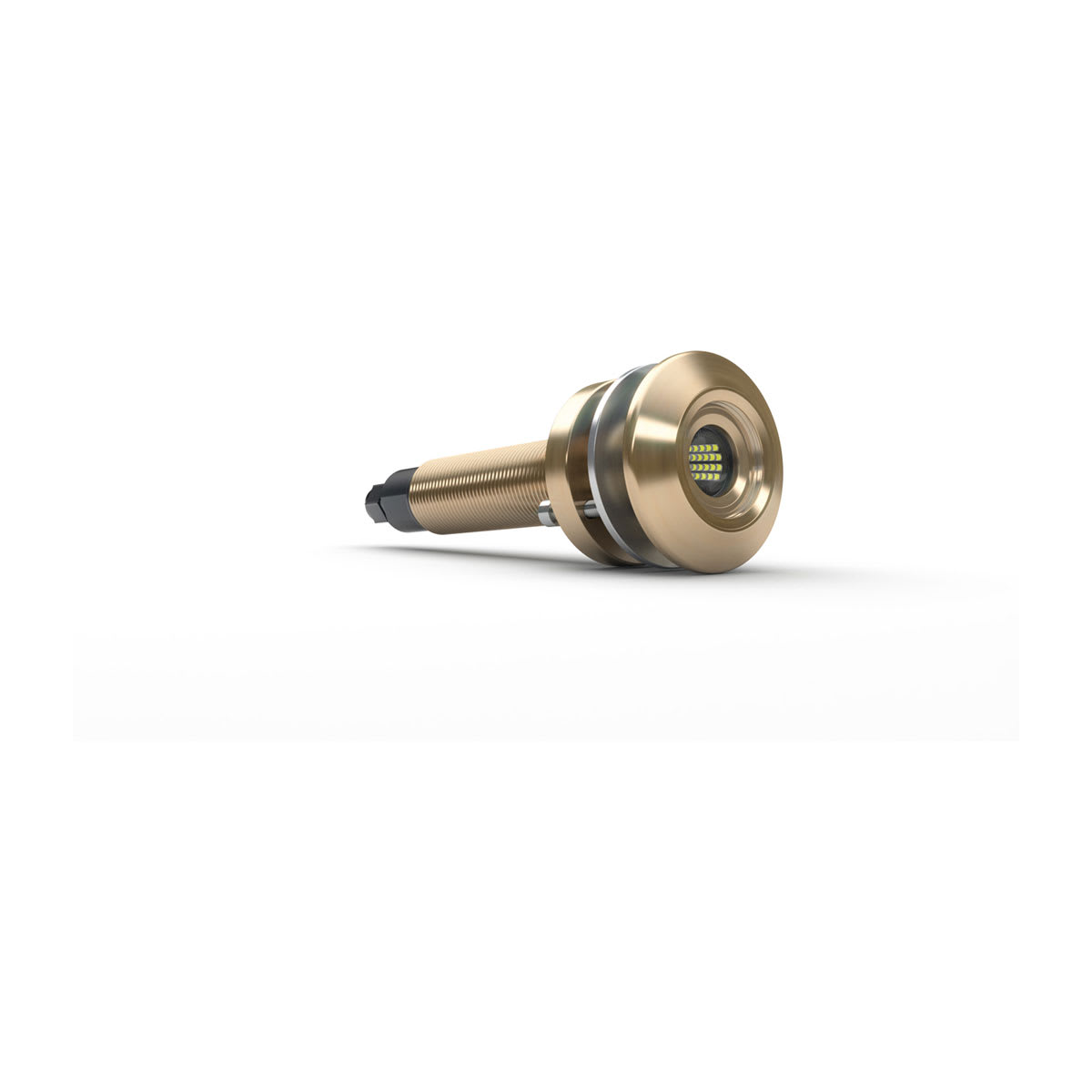

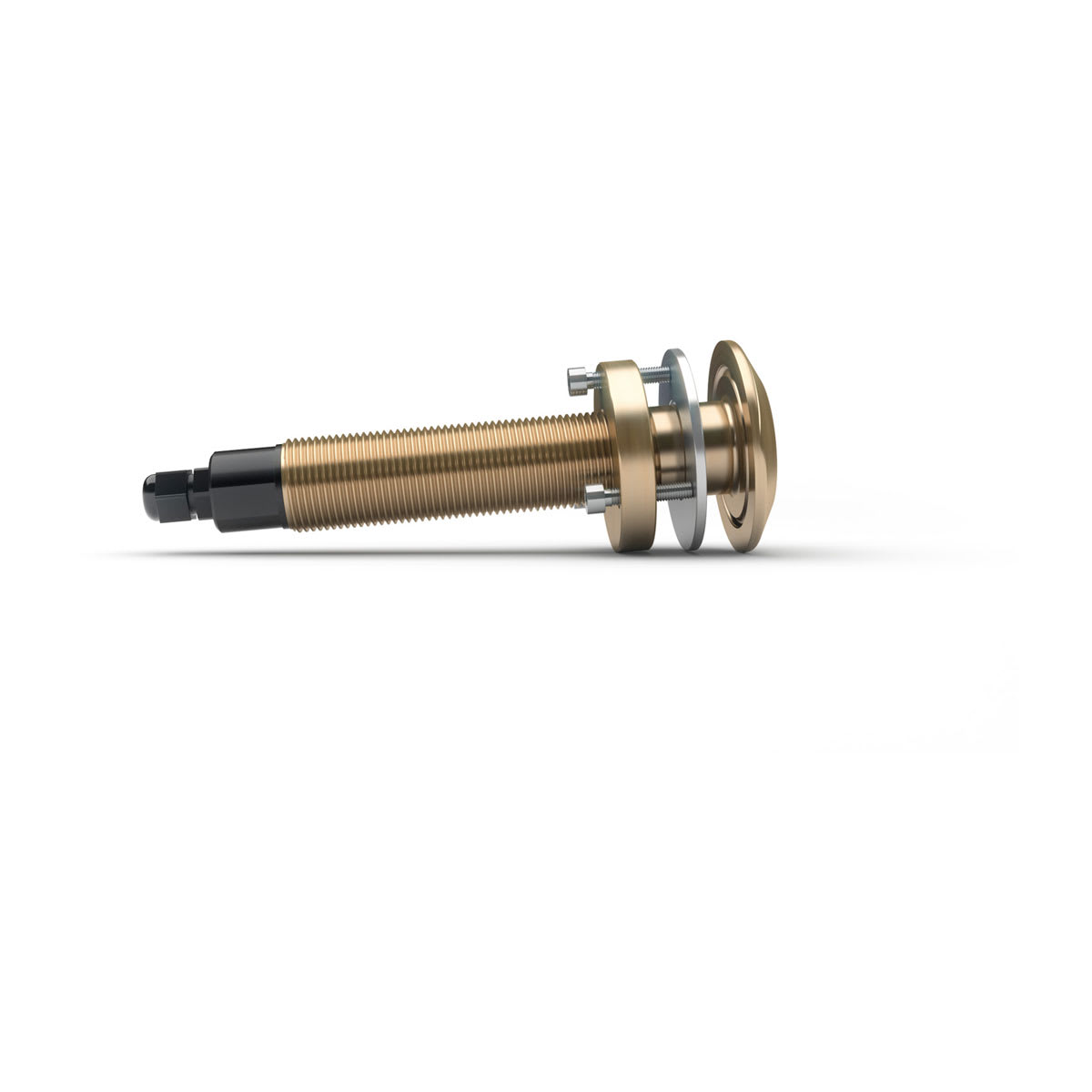

TIX204 underwater interchangeable thru-hull are single colour LED boat lights with 5,300 fixture lumens, exceptional brightness, and marine-grade construction.
General
Warranty
3 years
LED colors
Single color, White (6500K), Blue, Green
LED type
11 x 10 W White/22 x 3 W Blue/22 x 3 W Green
Fixture lumens
5,300
Beam angle
60°
Electrical installation
Simple 2 wire connection
Operating voltage
12 V/24 V
Operating voltage range
10.5-31 VDC
Current consumption 12 V (max)
4 A
Current consumption 24 V (max)
1.9 A
Average power draw
48 W
Construction
Marine bronze body with Borosilicate glass lens
Water and dust rating
IP68
Control Options
Direct power via on/off switch
Lighting Functionality
Functionality with direct power
Startup in model color
Applicable Controllers/Hubs
Direct power
Mounting Dimensions
Mounting diameter clearance (with bezel)
2.56" (65 mm)
Mounting depth clearance
6.57" (167 mm)
Frontal protrusion (profile)
0.36" (9 mm)
Mounting hole
1.1" (28 mm)
Dimensions (width)
2.56" (65 mm)
Dimensions (depth)
6.89" (175 mm)
Dimensions (height)
2.56" (65 mm)
Mechanical installation
Bonding required on non-conductive hulls (via connection on housing). Hull isolation sleeves must be used on conductive hull materials, including wood and carbon fiber (kit sold separately).
