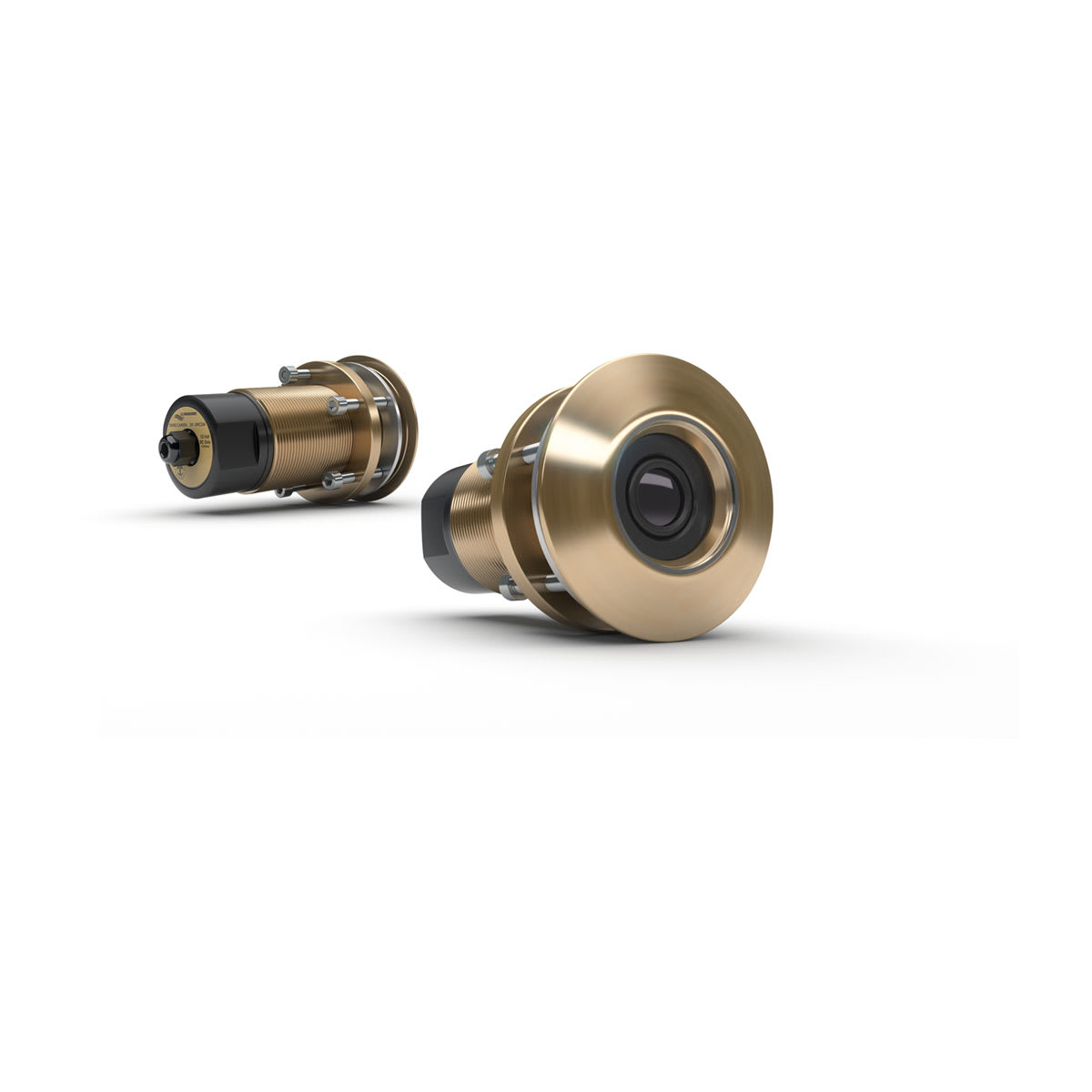

View underwater terrain and sea life in magnificent detail with this incredibly compact, flush-fit camera that offers flexible mounting options on your hull.

General
Resolution Full HD (1080p)
Lens 3.6 mm (fixed focus)
Viewing angle 67°
Minimum illumination 0.01 LUX
Camera output HD-SDI or composite (NTSC/PAL)
Operating voltage 12 VDC
Current consumption 12 V (max) 0.25 A
Average power draw 3 W
Construction Marine bronze body with Borosilicate glass lens
Water/Dust rating IP68
Warranty 2 years

Mounting Dimensions
Mounting diameter clearance (with bezel) 3.47" (88 mm)
Frontal protrusion (profile) 0.32" (8 mm)
Mounting hole 2.25” (57 mm)
Dimensions (Width) 3.47" (88 mm)
Dimensions (Depth) 5.67" (144 mm)
Dimensions (Height) 3.47" (88 mm)
Mechanical installation Bonding required (via connection on housing). Metal hull isolation (via optional isolation sleeves - kit sold separately).
