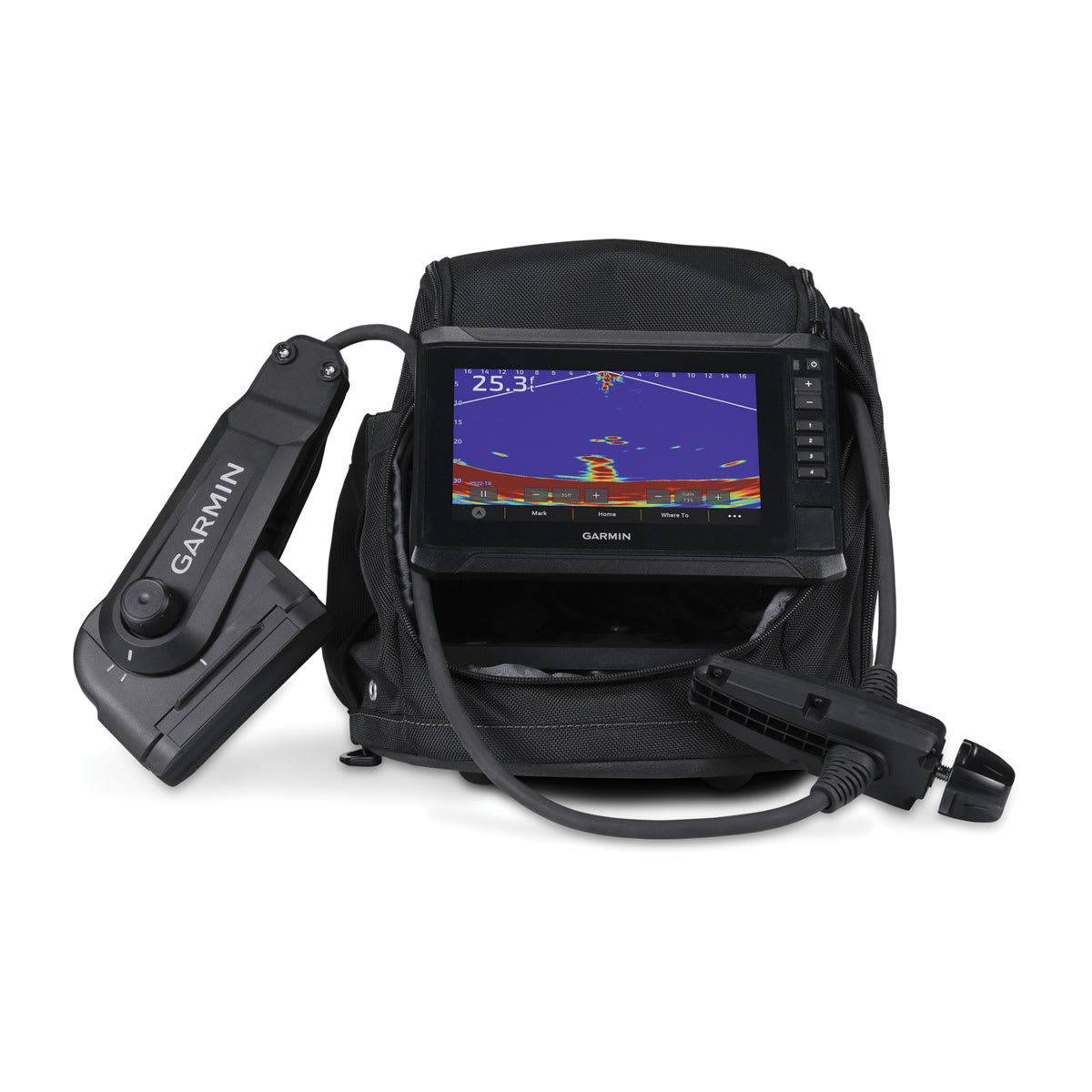

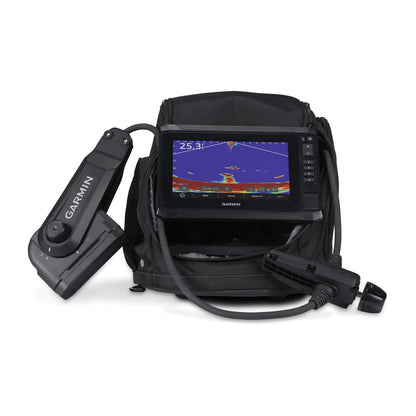

Panoptix™ PS22-IF Ice Fishing Bundle Includes ECHOMAP™ UHD2 73sv, Panoptix PS22-IF Transducer and Pole-free Transducer Rotation System

Panoptix™ PS22-IF Ice Fishing Bundle Includes ECHOMAP™ UHD2 73sv, Panoptix PS22-IF Transducer and Pole-free Transducer Rotation System

$116.99 USD
$388.00 USD $116.99 USD
Sale Sold out
Panoptix PS22-IF ice fishing kit provides two live sonar modes, an ECHOMAP UHD2 “7” and a pole mount-free design, to move faster between fishing holes.

General
Dimension 10.5" × 9.5" × 10.5" (26.7 × 22.9 × 26.7 cm)
Weight

12.2 lbs (5.5 kg)
Water rating

IPX7
Touchscreen
Display Type WVGA, TN
Display Size 6.1" x 3.4", 7.0" (15.5 x 8.7, 17.8 cm)
Display resolution 800 x 480 pixels
Input Touchscreen with keyed assist

Maps & Memory
Accepts Data Cards

1 microSD™ card; 32 GB maximum size
Waypoints

5000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100

Ice Fishing Details
Battery type, size SLA, 7Ah
Bag size S
Included transducer PS22-IF
Transducer holding feature Pole-free transducer rotation system

Sensors
GPS
GLONASS
Galileo
BeiDou
Has built-in receiver
Receiver

10 Hz
NMEA 2000 Compatible
Supports WAAS
Supports multi-band, multi-constellation GPS

Built-in Maps
Built-in Auto Guidance+ yes (downloadable via ActiveCaptain app)
Garmin Navionics+ Inland & Coastal yes (see Additional)
Garmin Navionics+ (Inland) yes (see Additional)

Optional Map Support
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours

Chartplotter Features
ActiveCaptain® compatible

yes

Electrical Features
Power Input 9 to 18 Vdc

Sonar Features
Displays sonar
Power output 500 W
Traditional sonar (dual frequency/beam) Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
ClearVü Built-in 260/455/800/1000/1200 kHz
SideVü Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar
LiveScope

Networking & Connections
NMEA 2000® ports
Garmin Marine Network Ports 1
12-pin transducer ports 1
Bluetooth® pairing
ANT® (Connectivity)
Garmin Wi-Fi network (local connection)

Additional
Additional

Garmin Navionics+ Inland & Coastal:  75sv Canada

Garmin Navionics + (Inland): 73sv U.S. Lakes
View full details
