Panoptix™ PS70, With Transducer and Fairing Block With Transducer and Fairing Block

Panoptix™ PS70, With Transducer and Fairing Block With Transducer and Fairing Block

$108.99 USD
$363.00 USD $108.99 USD
Sale Sold out

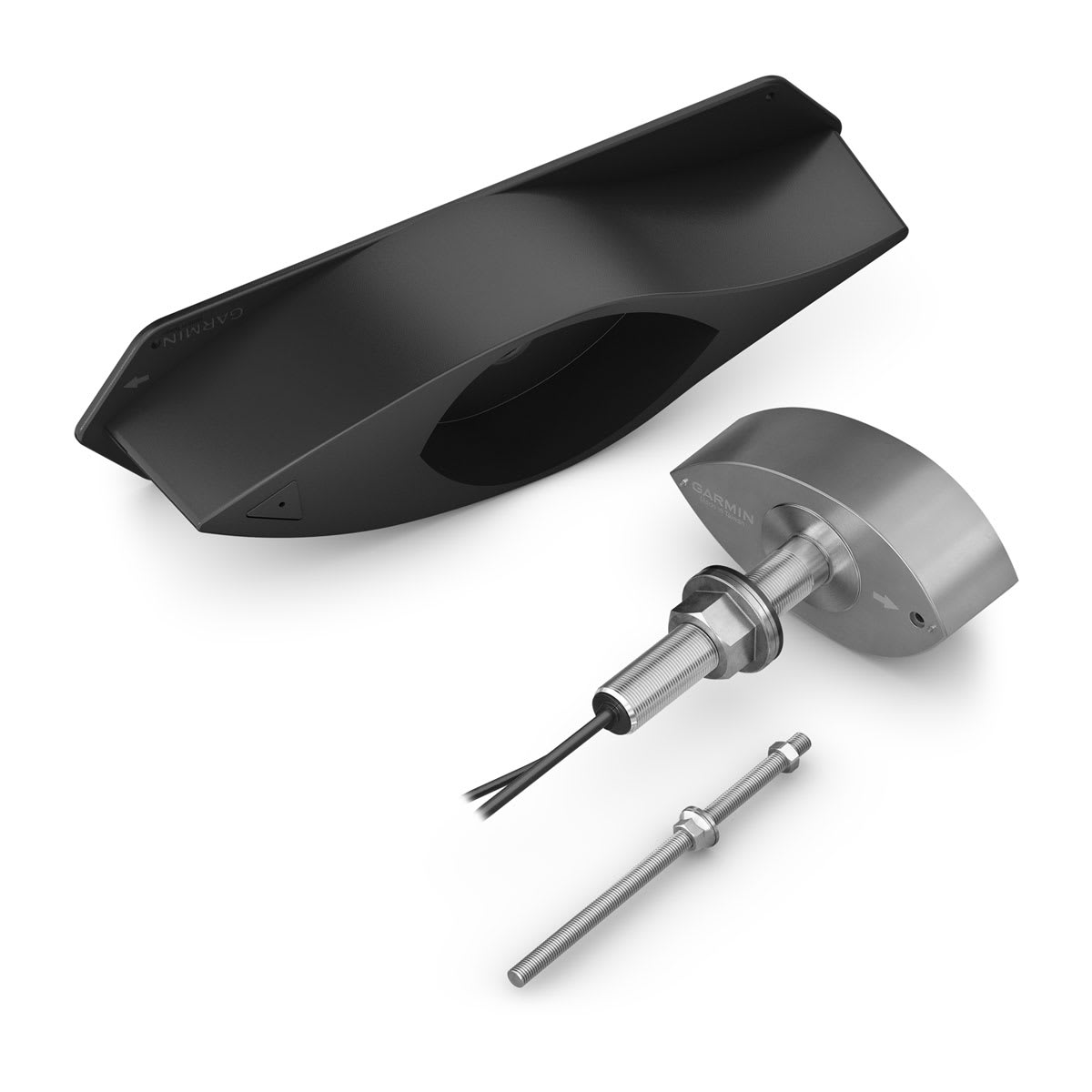

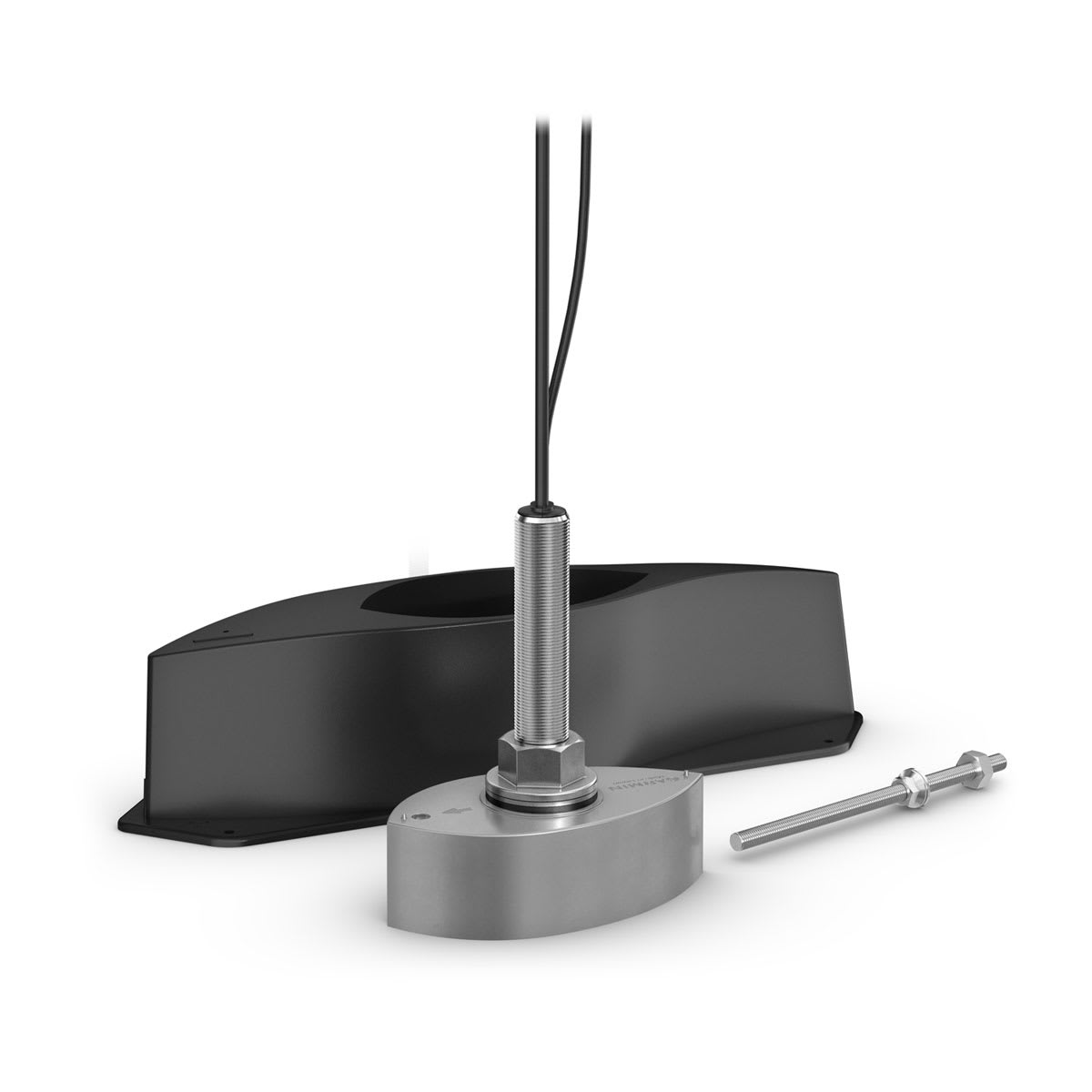

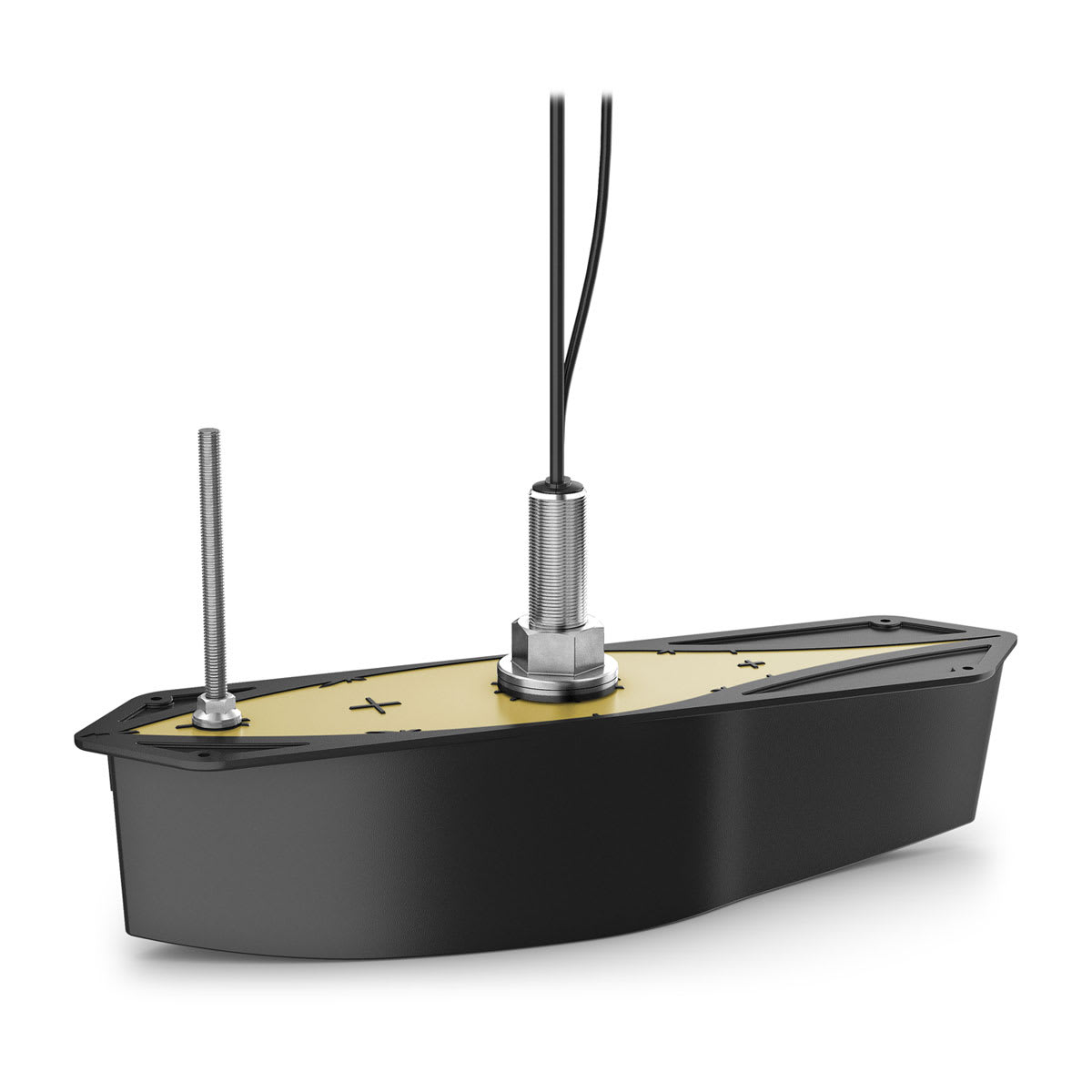

Panoptix PS70 transducer & fairing block is a Thru- Hull transducer powered by RapidReturn™ sonar, which gives you live views up to 1,000’ below the surface.

General
Transducer beamwidth 120° x 8°
Transducer cable length 8 ft + 40 ft extension
Dimension 8.50" x 4.49" x 9.61" (21.6 x 11.4 x 24.4 cm)
Weight

10.12 lbs (4.6 kg)
Temperature range 0° C to 40° C

Electrical Features
Power input 10-35 V
Power usage 35 W
Fuse 7.5 A

Sonar Features
Frequency 190-210 kHz
Transmit power 800 W
Maximum depth Saltwater: 1000' (304.8 m)
Sonar Type Multi-beam phased array

Networking & Connections
Garmin Marine Network Ports

1 (small connector)

Sonar Modes
RealVü 3D Historic
3-beam traditional
Traditional sonar source
