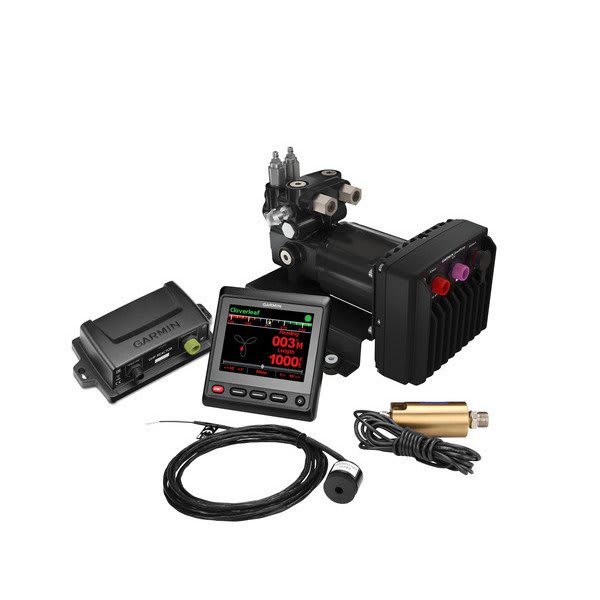

Reactor™ 40 Hydraulic Corepack with SmartPump v2 and GHC™ 20 With GHC™ 20 Autopilot Instrument

• Dimensions (H x W x D): 197 mm x 190 mm x 244 mm
• Weight: 7.5 kg
• Temperature range: From -15°C to 55°C
• Material: Electronics Control Unit (ECU) - fully gasketed, aluminium alloy; bracket - carbon steel; manifold - aluminium alloy; motor - aluminium alloy
• Power cable length: 2.7 m
• Power input: 11.5-30 Vdc
• Fuse: 40 A, blade-type
• Main power usage: standby - less than 1 A; engaged - 5-10 A; peak - 34 A
• Flow rate: Configurable from 0 to 2.4 L per minute
• Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in

CCU Specifications

• Dimensions: 3 19/32" diameter (91.4 mm)
• Weight: 159 g
• Temperature range: From -15°C to 55°C
• Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
• CCU cable length: 3 m
• NMEA 2000 power input: 9-16 V
• NMEA 2000 LEN: 3 (150 mA)

GHC 20 Specifications

Buzzer/Alarm Specifications

• Dimensions (L × Diameter): 23 mm × 25 mm
• Weight: 68 g
• Temperature range: from -15°C to 55°C
• Cable length: 3.0 m
