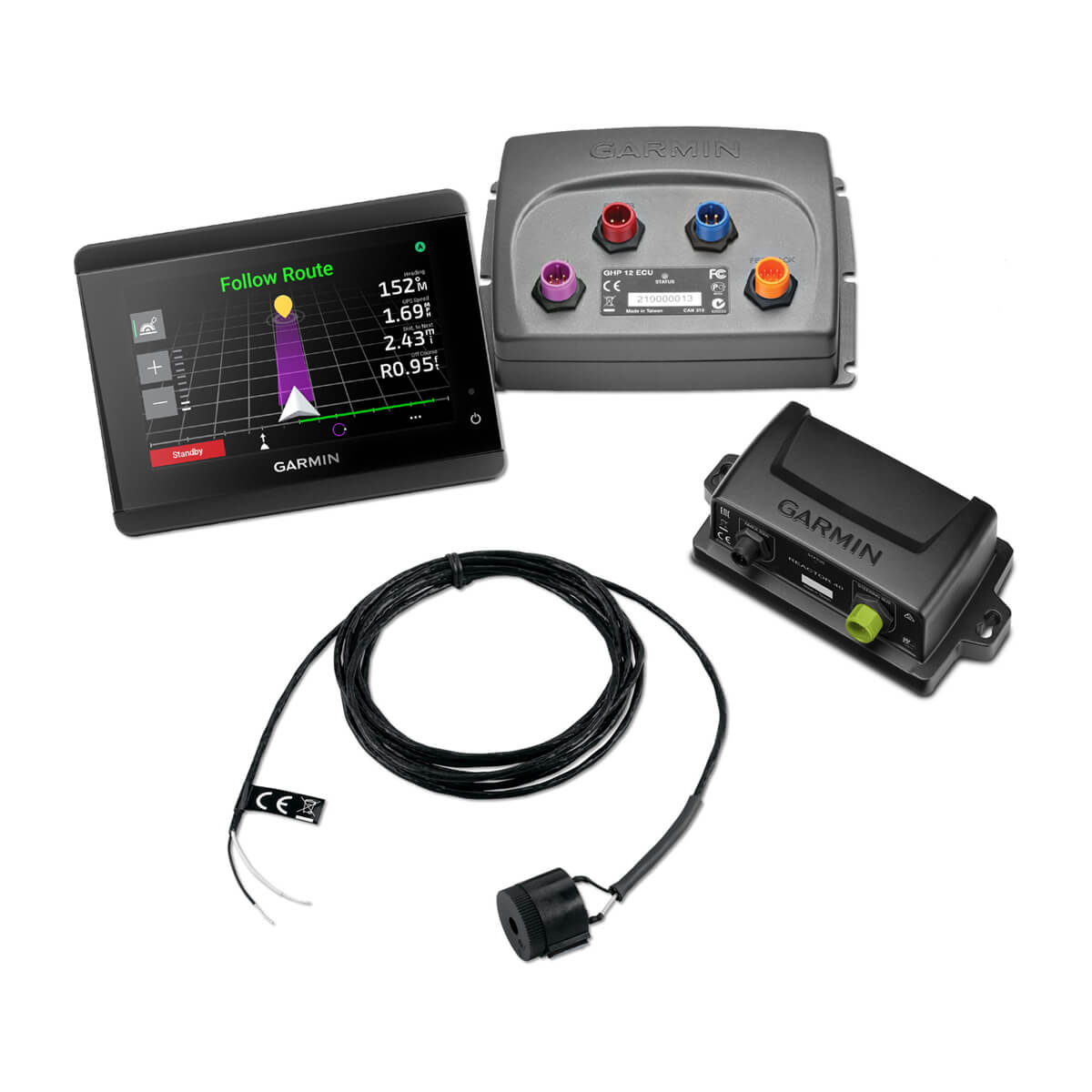

Reactor™ 40 Mechanical/Retrofit/Solenoid Corepack with GHC™ 50 With GHC™ 50 Autopilot Instrument

• CCU dimensions: 4.3" x 4.4" x 1.9" (10.9 x 11.2 x 4.8 cm)
• ECU dimensions: 6.6" x 4.6" x 2.1" (16.8 x 11.7 x 5.3 cm)
• Supply voltage: 10 V to 30 V
• Operating temperature: -15° C to 60 C° (5° F to 140° F)
• Maximum sustained motor current: 15A
• Maximum instantaneous motor current: 40A
• Maximum clutch current: 2.5A (for drives requiring higher current than 2.5A, a relay needs to be added to the clutch circuit)

GHC 50 Specifications

Buzzer/Alarm Specifications

• Dimensions (L × Diameter): 29/32" × 1" (23 mm × 25 mm)
• Weight: 2.4 oz (68 g)
• Temperature range: from 5°F to 131°F (from -15°C to 55°C)
• Cable length: 10 ft (3.0 m)
