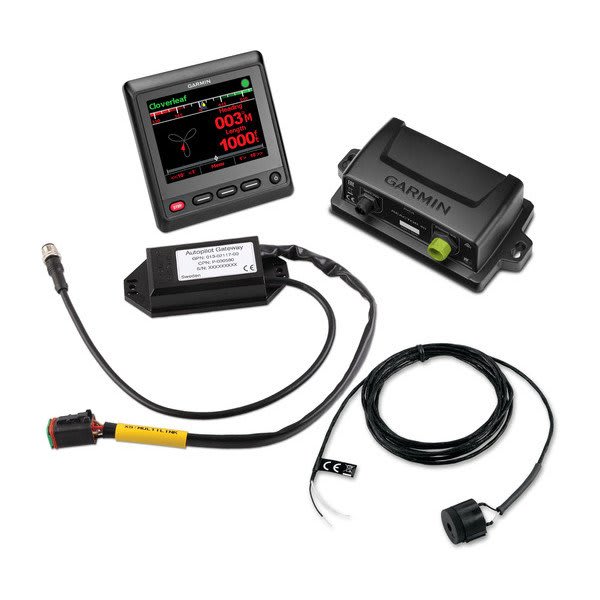

The Reactor™ 40 Steer-by-wire Corepack Yamaha® Helm Master® is the most responsive autopilot offered by Garmin. This system minimizes heading error & much more.
CCU Specifications
Dimensions: 3 19/32 in. diameter (91.4 mm)
Weight: 5.6 oz. (159 g)
Temperature range: From 5°F to 131°F (from -15°C to 55°C)
Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
CCU cable length: 9.5 ft. (3 m)
NMEA 2000 power input: 9-16V
NMEA 2000 LEN: 3 (150 mA)
GHC 20 Specifications
Buzzer/Alarm Specifications
Dimensions (L × Diameter): 29/32 in. × 1 in. (23 mm × 25 mm)
Weight: 2.4 oz. (68 g)
Temperature range: from 5°F to 131°F (from -15°C to 55°C)
Cable length: 10 ft. (3.0 m)
Autopilot Gateway Specifications
Dimensions (L × Diameter): 5 1/8"" × 2 3/8" x 1" (130 mm × 60 mm x 25 mm)
