• VHF 315/i Marine Radio VHF 315 Marine Radio
  • VHF 315/i Marine Radio VHF 315 Marine Radio
1 2

VHF 315/i Marine Radio VHF 315 Marine Radio

VHF 315/i Marine Radio VHF 315 Marine Radio

$110.99 USD
$367.00 USD $110.99 USD
Sale Sold out

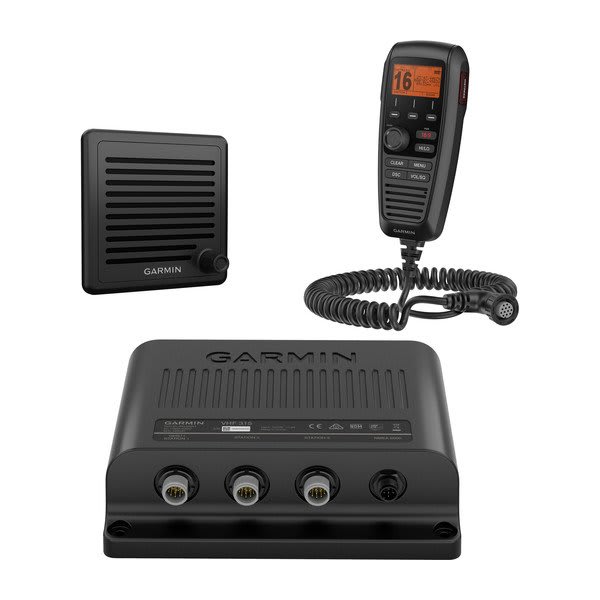

The VHF 315 Marine Radio includes a fist mic handset, intercom system, built-in GPS & allows you to stay in contact with via the Garmin the NMEA 2000 network.

General
Unit size 205 x 181 x 60 mm (8.1" x 7.1" x 2.4")
Weight

3.4 lbs (1.53 kg)
Operating voltage 10.8 - 15.6 VDC
Water rating IPX7
Display Type monochrome FSTN LCD
Operating temperature –15° to 55° C (5° to 131° F)
Inland waterways (ATIS)

VHF Features
Dual/Tri watch
NOAA weather alert
Loud hailer
Loudhailer listen back
Intercom support

VHF Radio
Region All U.S., Canadian. and International marine channels; NOAA weather channels
VHF frequency range Tx 156.025–162.025 MHz
VHF frequency range Rx 156.050 MHz to 163.275 MHz (including WX channels)
VHF transmit power (max) 25 W, 1 W (high, low)
Transmitter frequency tolerance +/0.5 kHz
Adjacent channel power 70 dB
Spurious emissions -80 dBc (at 25 W)/0.25uW
Sensitivity (12 dB SINAD) -118 dBm (-11 dBu/0.28 uV)
Adjacent channel selectivity 70 dB
Spurious response 70 dB
VHF intermodulation 68 dB
Max antenna gain 9 dBi

DSC
Class Class D
Sensitivity (1% BER) -113 dBm
Adjacent channel selectivity 70 dB
Spurious response 70 dB
Intermodulation 68 dB

AIS Transponder Features
Remote station support GHS 11 (x3)

GNSS
Integrated GNSS receiver
Constellations GPS, GLONASS
Differential support WAAS, EGNOS
Navigation rate 1 Hz

Sensors
NMEA 2000 Compatible
NMEA 0183 Compatible

Audio
Max external speaker output power active speaker, 4 W
Max hailer loudspeaker output power 20 W at 4 Ω

Electrical Features
Typical current draw at 12 Vdc 600 mA, 6 A max
Compass-safe distance 2" (5 cm)

Networking & Connections
External GNSS antenna connector BNC
Ant connector SO-239 (50 Ω)
View full details
